If you want to know how to build a homemade pallet smoker, you’re in luck! Here’s a detailed tutorial on how you can start building and get smoking in no time!
Yes, with a pile of old pallets, less than $100 and a bit of work, we built this really cool smokehouse. 3’x3′, it’s big enough to smoke a whole animal, or at least a few big trays of meat plus some links of sausage.
I love this project – It still amazes me what you can build with repurposed wood and how great it looks. We really wanted to make a big DIY smoker, but most of the plans we looked that showed you how to build a smokehouse were too small and/or they called for using quite a bit of expensive materials. We never found plans that really met our requirements, so we ended up making our own.
Our considerations for DIY smoker plans were:
- size – it needed to be big enough to a lot of items at once and also smoke large items
- cost– it needed to be as inexpensive as possible while still allowing you to smoke meat well
- skill level required – it needed to be something you could do with basic woodworking knowledge
I don’t know if you have ever smoked meat before, but it is a rewarding, yet time consuming task. Since your meat will be preserved, and therefore good for a long time, it makes the most sense to be able to smoke a lot at once. After determining how much wood we needed for a decent size smoker, we decided to go with repurposed pallets. For less than $100, we were able to put together this great smokehouse that can hold a ton of meat. Multiple racks for smoking as well as a place to hang sausages, you can even hang a whole deer in it if you like.
Here are the supplies you need to get started and the instructions and video for this cool project:

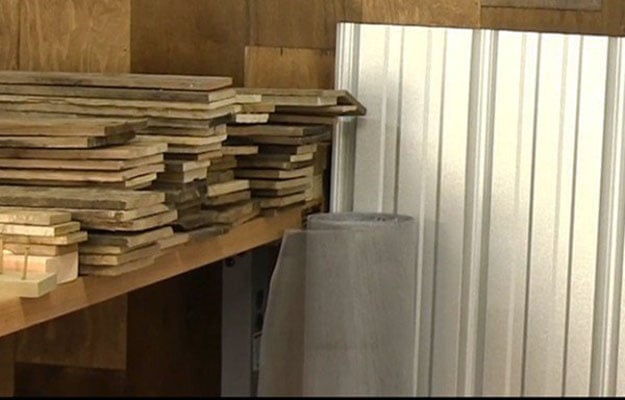

What you’ll need to build a homemade pallet smoker:
- 20-30 pallets, deconstructed (need pallets? read this post about finding free pallets and this post about finding the safest pallets to use for your project)
- 2 1/2 inch screws *you should choose a good outdoor screw, we used plastic coated decking screws
- 1 1/4 inch screws
- aluminum flashing
- corrugated tin for roof (4’x3′) *this must be raw metal, not galvanized
- heavy duty tin foil
- roll of aluminum screen
- handle (for door)
- hinges (3)

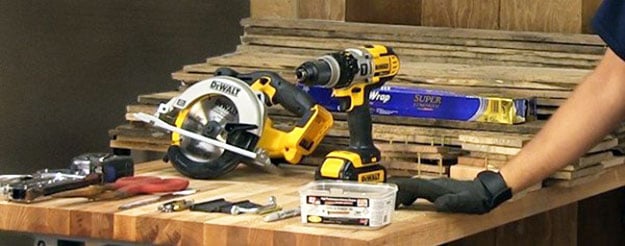

Tools You Will Need to Build A Smokehouse:
- reciprocal saw with bimetal blade (used to take pallets apart)
- drill gun, preferably a cordless one
- drill bits 1/8 bit and countersink bit
- measuring tape
- metal/tin snips
- utility knife
- Skil saw or table saw
- Staple Gun
- Safety Glasses
- Work Gloves
Check out our project videos for this DIY Smokehouse:

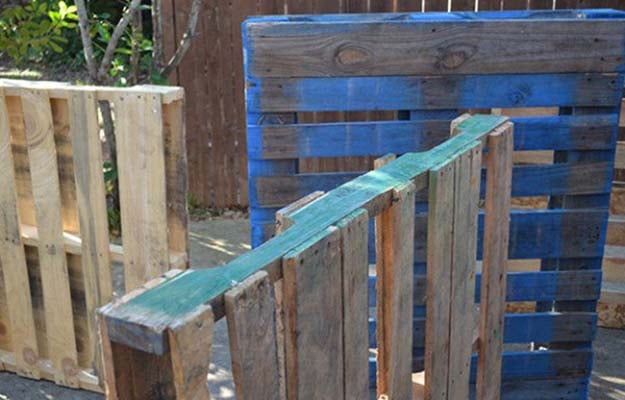

Step 1 : Select Your Pallets and Deconstruct Them
There are a few challenges when you use free, repurposed materials. The wood you get is not consistent, often very dry, sometimes warped. It splits easily. It is far from perfect, but it is free. You will need 20-30 pallets for this project. We recommend you spend some time looking for ones without too many broken slats and without wood that is too visibly warped. It is fine if you do not do this or are not able to find perfect pallets (those do not exist) You wood may be a little warped, but that is fine. Your smokehouse will not be perfect, but it will smoke meat. You will want to get a few more pallets than you think you need in order to get the best materials. Pallets usually range from 42″-48″ and 3’x3′ design should allow you to build this when you use pallets in this size range. The 2x4s in most pallets are typically 4′ – 5′ long and they have cutouts for a forklift. The cutouts are fine. If you need to, you can sister two boards together, which we explain further in our DIY Smoker Video.
Where to Get Pallets? Check out our article: Where To Get Free Pallets and Reclaimed Wood
How To Know If Your Pallets Are Safe ? How To Tell If A Pallet Is Safe To Use

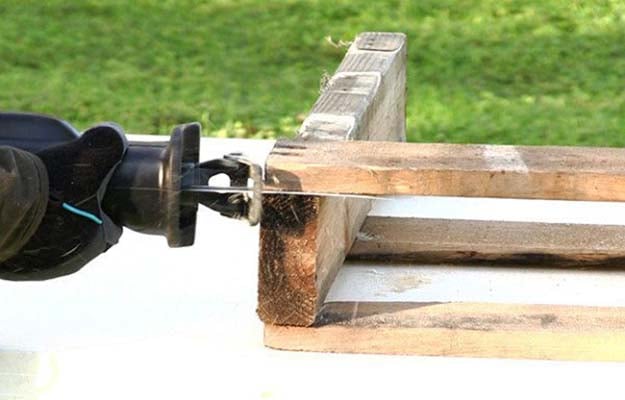

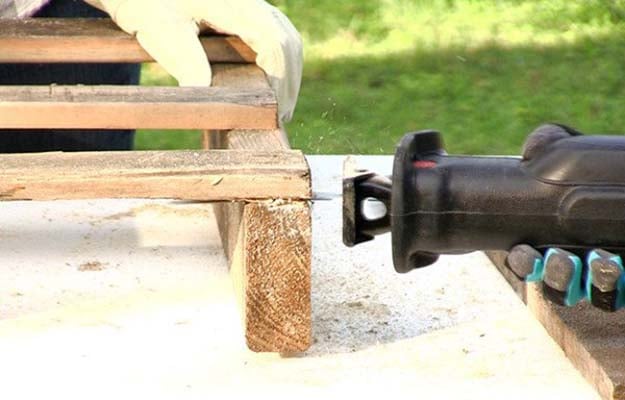

Deconstruct your pallets. We recommend you use a reciprocal saw with a bimetal blade that cuts through nails to do this. Trust me, this is the easiest way. View our tutorial and video on The Easy Way to Deconstruct a Pallet for step by step instructions.

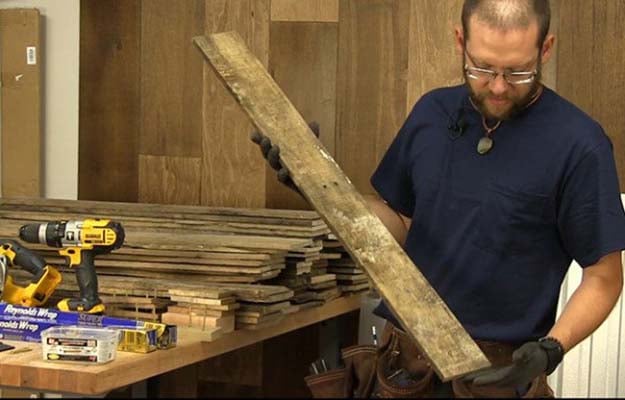

Step 2 : Cut Clean Ends on Board and Make Cuts Below

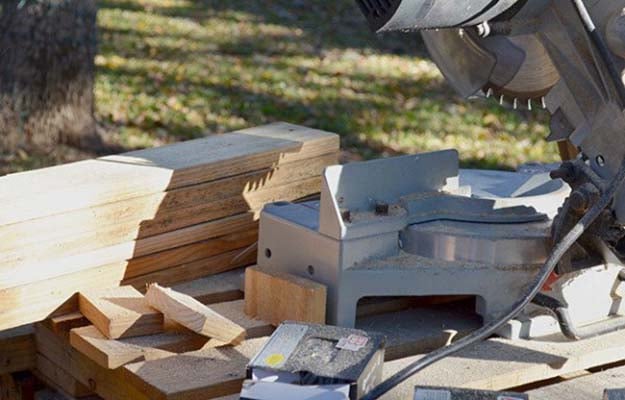

Once you have your pallets deconstructed, you need to make your cuts. Start by making clean cuts on the ends of all your pallet boards. You should only need to remove a little bit. We chose our 3′ design to accommodate for this loss of wood from your pallets.
Cut these from 2x4s:
- (part 1) 2 top braces front and back @ 33”
- (part 2) Door frame 2 pieces @ 70”
- (part 3) Door frame 2 pieces @ 29”
- (part 4) Wall frame front 2 pieces @ 6’
- (part 5) Wall frame back 2 pieces @ 5’ 6”
- (part 6) Back frame 2 pieces @ 5’4” 1×1
- (part 7) Shelf supports 8 pieces @ 33”
- (part 8) Shelf frames 8 pieces @ 32 ¾”
- (part 9) And 8 pieces @ 30 ½ “
Cut these from Pallet Panels:
- (part 10) Left side @ 36 ¼ “
- (part 11) Right side @ 34 ½ “
- (part 12) Door @ 35 ¾”
- (part 13) Back @ 35 ¾”
- (part 14) Roof @ 38”
- (part 15) Vent covers 2 pieces @ 18” to 24”
- (Part 16) Bottom front brace 1 piece @ 36”
- Corrugated Metal roof 4’x3’
PREDRILL AND COUNTERSINK SCREWS:
Depending on the condition of your wood you may need to pre-drill and counter sink ALL screws to ensure the wood does not crack. We highly recommend you do this when using repurposed wood.
Step 3 : Layout and secure racks and frame for left and right sides
You will be making two sides frames here that also have cross pieces that will hold your racks. This DIY smoker utilizes a neat design – the racks make the structure itself, and you can even easily adjust the rack heights in the design. The parts that hold the racks in place end up being the ribbing that holds the frame in place. We marked ours at 24″, 36″, 44″and 52″ so we could place bigger meats close to the fire and smaller meats further away. You can even add hooks at the top for sausage if you allow enough room to hang. The only important consideration is your firebox, which we set at 24″ NOTE: Make sure your fire box fits under the 24” bracing. Adjust your shelves as needed. These measurements are not set and can be placed at any useable height as long as you allow ample room for your firebox.
Assemble and secure:
Take one each of (part 4- Wall frame front, 6’)and (part 5 – Wall frame back , 5’ 6”) square the bottoms, and secure 4 pieces of (part 7- Shelf Support, 33″) at 24”, 36” 44” and 52” When securing parts 7 to part 5, leave a 1 ½” gap for part 6. You will repeat these same steps for the second side, leaving you with the frame for the right and left side of your smoker.
Step 4: Build frame for door
Take parts 2 and 3 (part 2 – Door frame, 2 pieces @ 70”) and (part 3 – Door frame, 2 pieces @ 29”) and screw them together to create door. We used a homemade jig so we could easily get our screws in at an angle. Use four screws on each corner.
Take two of your 70″ pieces (part 2) and two of your 29″ pieces (part 3) and screw them together to make your door.
Step 5: Stand sides and door up, then secure
Stand the walls and door together and temporarily screw the door to the face of the walls so you can hold them together.
— Homesteading (@HomesteadingUSA) September 7, 2015
Step 6 : Cut angle for roof
Using a piece of panel, set against the top of the left and right wall, draw a line to create the angle for the pitch of the roof, and cut off excess to create the pitch of the roof.
Screw in part 1 (part 1 – two (2) top braces for front and back @ 33”) at the top of the walls front and back.
Step 8 :
Add in part 6 (part 6- Back frame 2 pieces @ 5’4” 1×1) to the back of the frame, screw into part 5 (Wall Frame Back).
Step 9 : Add paneling
Paneling. Add the back paneling first from the ground up. Repeat for the right and left sides.
Remove door from frame. Screw in hinges and re-hang the door. Leave at least a ½” gap at the base of the door.
Add paneling to door, then add paneling to roof last.
NOTE: Right side is shorter so that hinges have space to rotate. Also, Left side is longer so the door sits inside the paneling.
Continue adding paneling until you get to the top.
Step 10 : Attach wood for roof
Screw roofing materials (part 14 Roof @ 38”) onto top to make roof.
Step 11 : Finish door
Put door frame back in place. Attach hinges to one side of door frame. Add pallet panels to door. Attach handle to front of door on opposite side from hinges.
Starting at the bottom, attach the pallet panels to the door until you get to the top. Drill the vent holes and attach your handle to the door on the side opposite from the hinges.
Step 12 : Construct racks
Screw rack parts together. (part 8 – Shelf frames 8 pieces @ 32 ¾”) Staple screen onto rack. Once you have two sides stapled, be sure to pull the screen tight as you staple the other two sides.
Screw the pieces for the rack frames (part 8,) together to make your smoking racks.
Cut the aluminum screen to size using your metal snips.
Step 13 : Cut vent holes
Select 2 panels from the door, one at the base and one at the top. Remove the panels, screw part 15 (part 15 – Vent covers 2 pieces @ 18” to 24”) to the face and drill holes using a hole saw. Make sure to leave enough space between the holes that they will be able to be closed off. Remove screws and build a brace to hold part 15 in place.
Step 14 : Line inside with foil
Line the interior of the smoke house with heavy duty tin foil. Make the structure as air tight as you can. Expect to use 2 to 3 rolls of foil. Use a staple gun to secure the foil to the walls.
NOTE: do not use any galvanized metal in the smoke house as it is toxic.
Step 15 : Attach tin roof
Attach tin to roof and secure with screws.

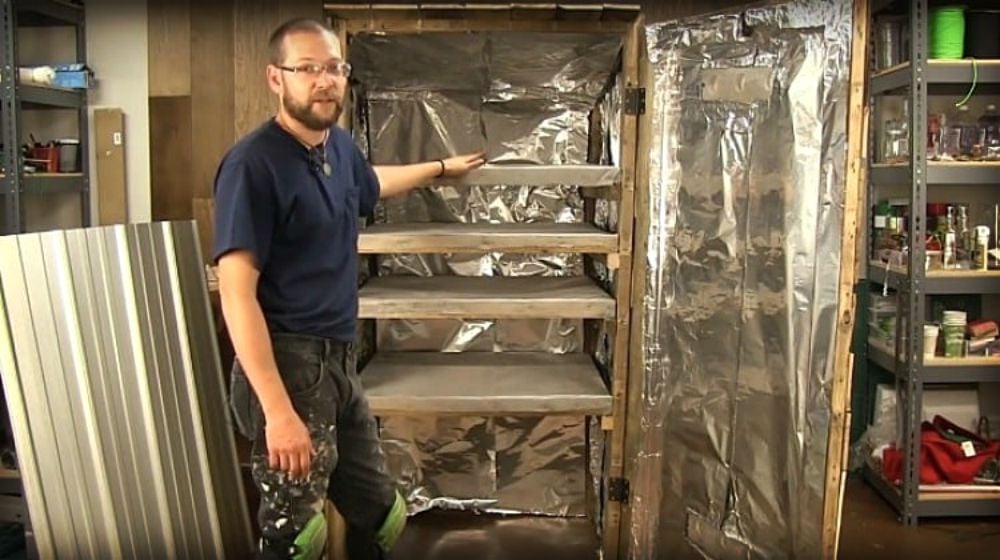

Step 16 : Admire your finished smoker
Your DIY smoker is complete and ready to smoke meat!
There you have it. Your very own, hand-crafted smoke house. Now get to cooking!
Be sure to check out our step by step project videos:
How To Build a DIY Smoker: Part One
How To Build a DIY Smoker: Part Two
How To Build a DIY Smoker: Part Three
Are you going to build this homemade pallet smoker this weekend? Let us know below in the comments below.
